Simrad Screenshots from Lake Anna


Tuesday, January 18, 2022

Simrad Screenshots





  This screenshot was taken from my Simrad running 17mph. I put this up here to show that with a properly installed transducer you can get clear readings at just about any speed under 40mph on not only sonar but also down scan and side scan. I have my map with GPS on the left, sonar in the middle, Down Scan on the right and Side Scan on the bottom of the page. I use this set up about 90 percent of the time giving me all the information I need. The map shows the channels in light brown, water less than 10 feet in the darker blue, waters 10 - 29 feet in the light blue and water over 30 feet in white. The yellow is land. The structure we are looking at is an underwater silo that was on a farmers land prior to the lake being filled. We have all driven by farms with the land dug out about 20 yards wide and 50 yards back filled with silage covered with a tarp and tires holding the tarp down. On the Side Scan you can see the ditch going out about 50 feet either direction.

In this shot I was running on plane seeing Stripers [shown in red] between 20 to 30 feet. Looking for fish at higher speeds all I am looking for is the red on the screen. The vertical black dots is simply a little motor noise, I like to keep my sensitivity high, I don't notice the noise. If I reduced my sensitivity I my not be able to distinguish the fish at speeds as well.

This pic is of a blown up railroad trestle showing the concrete laying on the bottom of the lake There are two schools of bait 30 feet down next to the concrete. The middle of the screen is my sonar in bottom lock showing the bottom 7 feet off the floor of the lake and the right side shows the whole picture of the water column. Notice how Down Scan shows the concrete laying on the bottom in Brown where the sonar did not distinguish that.

In this screen shot you don't see much on sonar but Side Scan showed fish near the bottom off to the right of the boat. You can also see the shadows further to the right which helps determine the size of the fish.

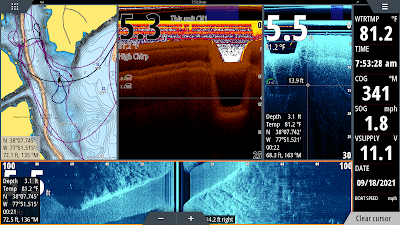

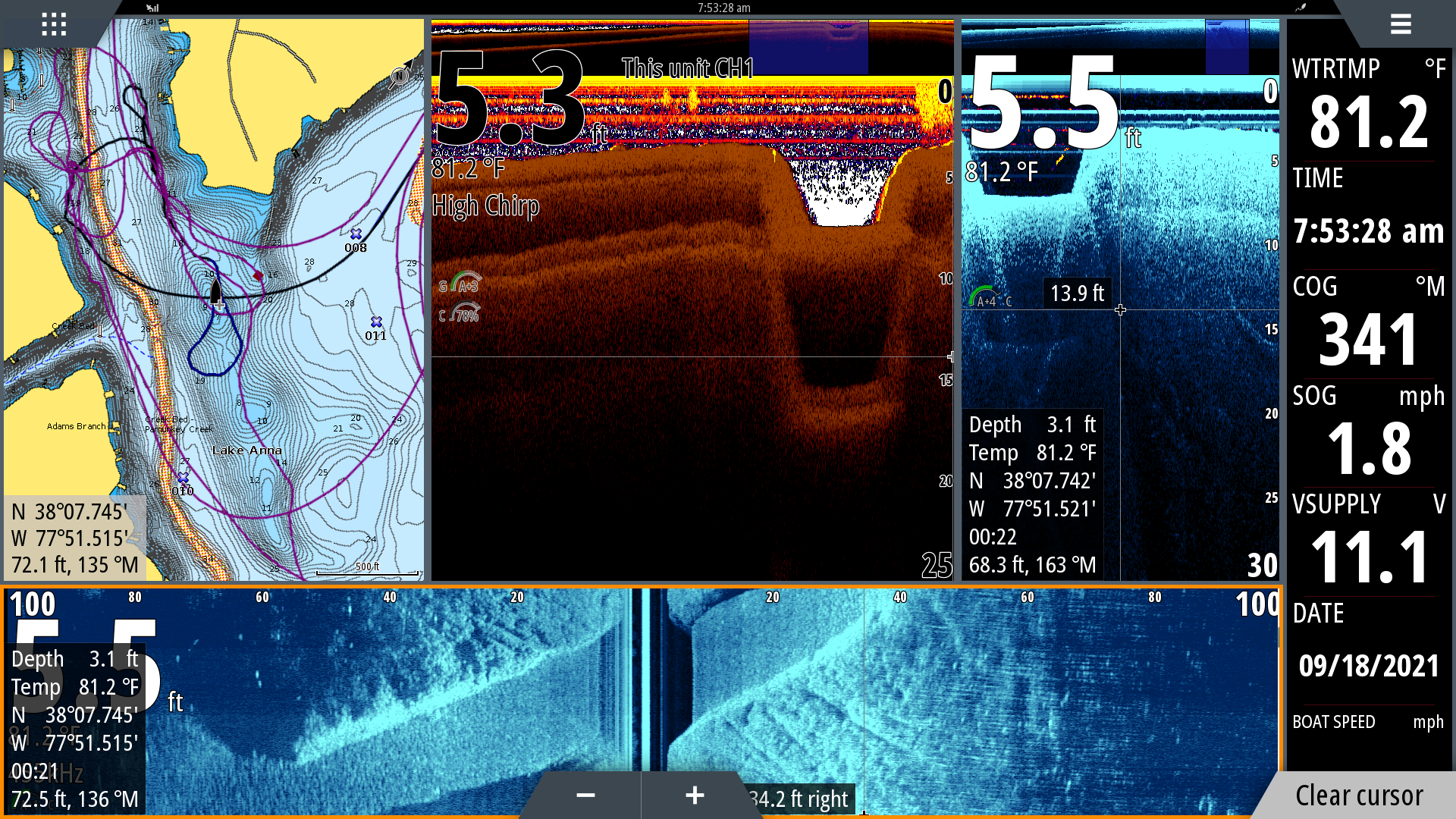

This is the same silo that is in a picture above but the boat was going only 2 mph. Notice the hard bottom and how distinct the walls are!

This is a shot of a bunch of different size fish in a school. Down Scan clearly shows again where the nicer fish are positioned in the school. Usually the most aggressive Stripers are in the front of the school as it moves and on top of the school. I set downlines out at 20 feet to catch the nicer fish, only smaller fish toward the bottom.
